詳細信息當前位置：首頁 -> 螺栓型陶瓷電容

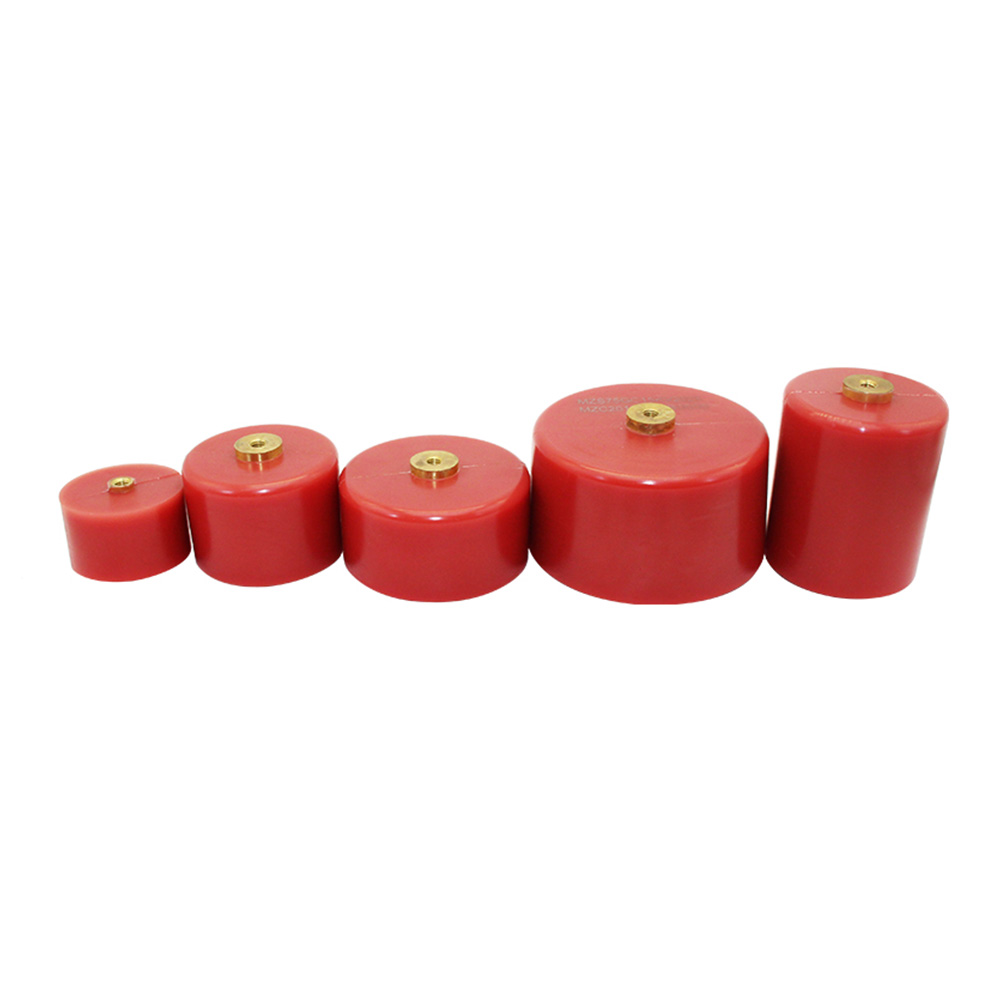

名稱：Y5T材質高壓螺栓電容

發布時間：2019-08-09 16:16:55點擊率：

詳細信息

產品特性Features

低損耗Low dissipation factor of 0.2% at 1 KHZ

高頻特性好High frequency ≥550KHZ

過大電流High current ≥50mA

耐壓特性好High voltage ≥2倍

絕緣電阻大High insulation resistance ≥200000MΩ

使用壽命長Long life ≥10 years

用途Applications

適用于高頻高壓電源High frequency & high voltage power supplies;

激光CO2 lasers, high voltage pulse generator

X光機電源X-ray equipment

無損探傷檢測NDT (Non-destructive testing)

機場安檢設備Airport security equipment

負離子產品negative ion products / anion products

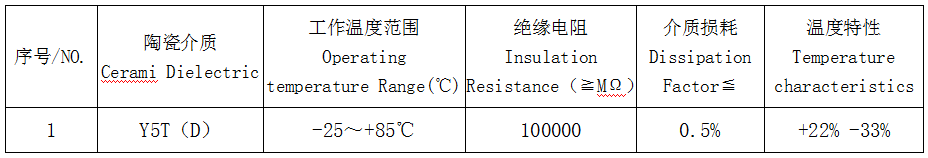

陶瓷溫度特性Ceramic dielectric properties:

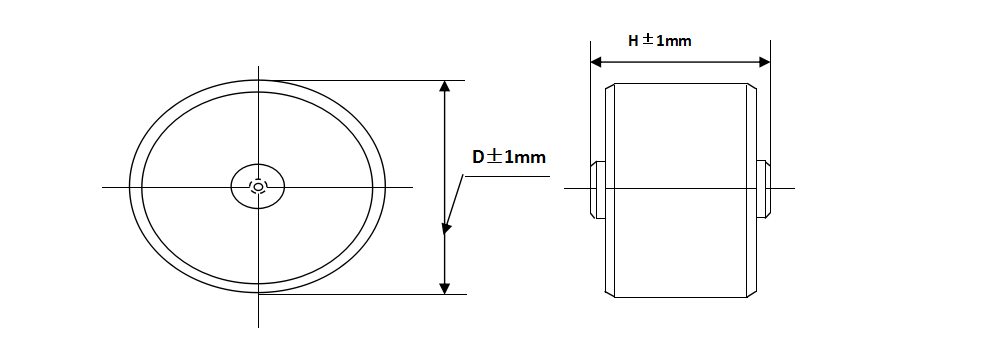

外觀尺寸Dimension & Lead Style:

訂購產品說明Ordering Information

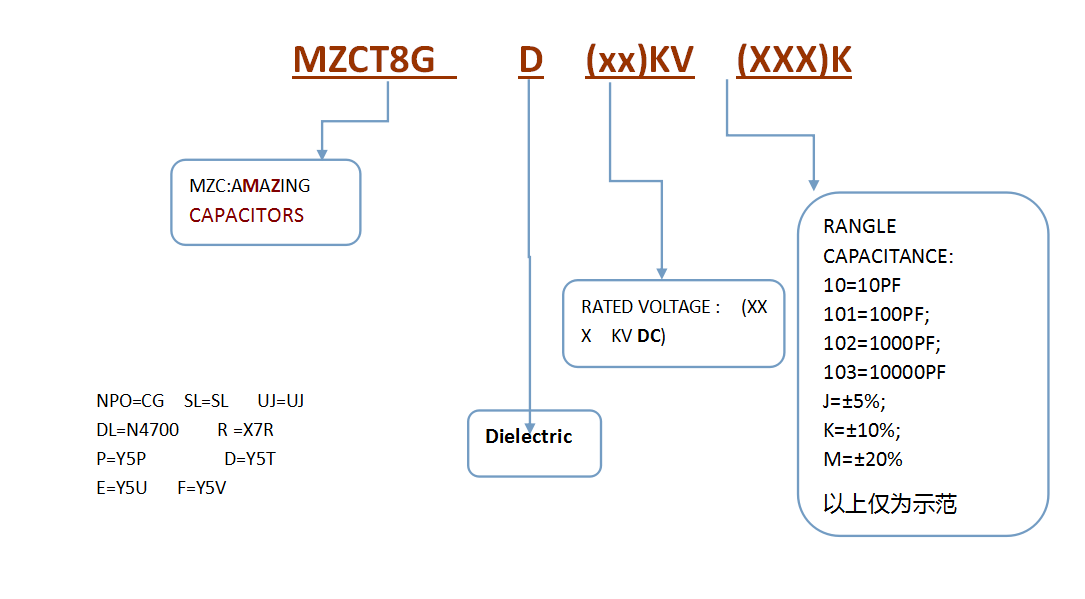

物料編碼釋義Explanationt of part numbers:

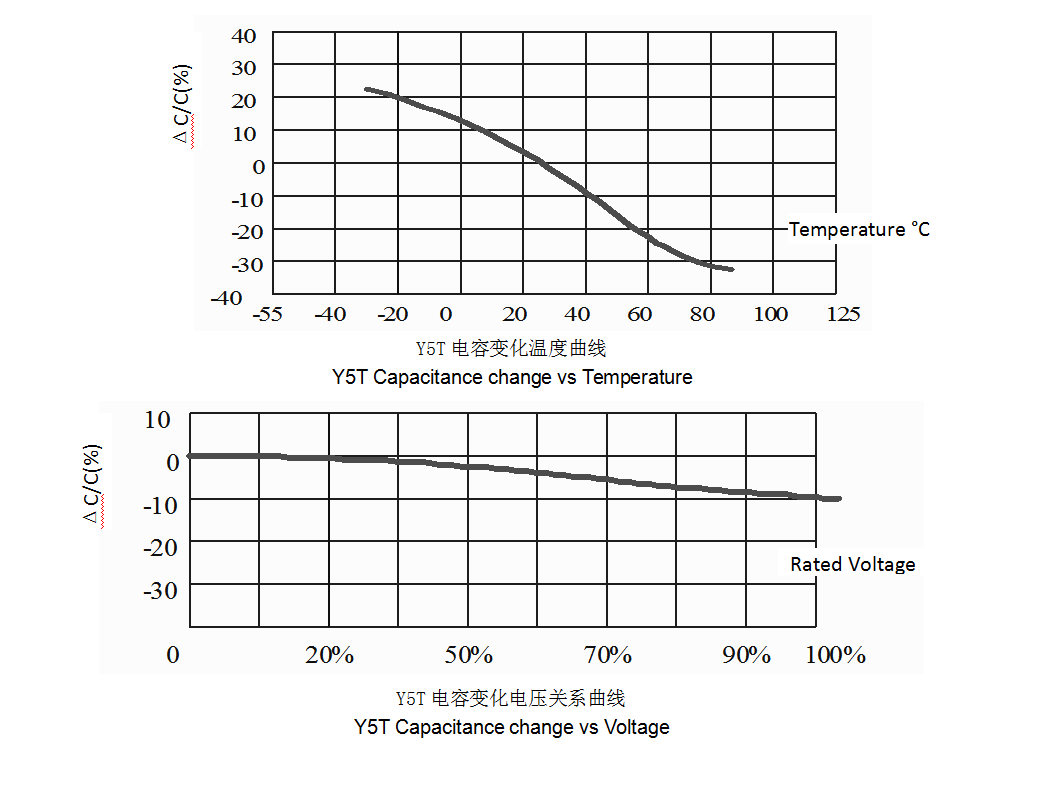

About Y5T ceramic

Y5V材質是一種性能較好的II類通用陶瓷，當溫度在-25°C到+85°C時其容量變化為+22/-33%，介質損耗小于1%，絕緣電阻大于100000MΩ。

Y5V is a better performance of Class II General Ceramics.Its temperature variation of capacitance is within +22/-33% from -25°C to +85°C. Dissipation factor is less than 1%, insulation resistance greater than 100000MΩ.

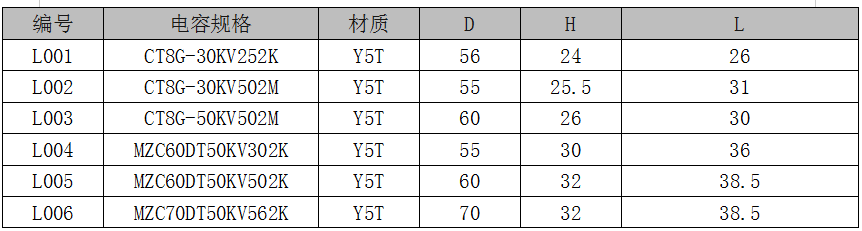

選型表

注意事項 PRECAUTIONS

（1）運輸和儲存：

?請避免在高溫或高濕度或淋雨?duì)顟B(tài)下運輸或儲存電容。

?不要放置在有毒氣體，如硫酸，鹽酸，硝酸等。

?避免碰。

（2）在操作過程中：

?避免接觸，如汗液電解質。不要赤手觸摸。

?避免過多的影響，如墜落造成。

?請勿焊接螺柱端子。

?不要再機終端。

（3）用法：

?當電容器用于高速脈沖，如激光，確保外加電壓（峰 - 峰值電壓），電容器的額定規格內。

?確保電容不暴露輻射室或變壓器。

(1) During transportation and storage

? Do not transport or store where the capacitor will be exposed to high temperature or high humidity.

? Do not expose to poisonous gases such as H2SO4, HCL or HNO3.

? Avoid excessive impact such as that caused by falling.

(2) During operation

? Avoid contact with electrolytes such as perspiration. Do not touch with bare hands.

? Avoid excessive impact such as that caused by falling.

? Do not apply solder to stud terminals.

? Do not re-machine the terminals.

(3) Usage

? When the capacitor is used for high-speed pulses such as with a laser, make sure that the impressed voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications.

? Make sure that the capacitor is not exposed to radiant heat from cham.
